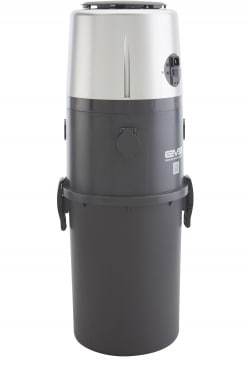

Electron EVS Ducted Vacuum Cleaner System Model Spelite

Model SPolite Vacuum Motor Specifications Flow Through discharge Double ball bearings Diameter of Motor mm 145 Air Watts 605 Airflow/s (max) 58 Sealed Vacuum mm H2O (max) 3400 RPM @19mm working orifice 26250 Label Rated Electrical Watts 1600 Noise Level db with Silencer 3m 69:0 Temperature Sensitive Thermal Protector Control Circuit 12 V DC Control Current 100mA Nominal Voltage 240 V AC Nominal Frequency 50 Hertz Power Unit Physical Specifications Overall Height (mm) 840 Overall Diameter (mm) 310 Overall Weight (75 Dual Filtration Compatible System Cyclonic Filtration (Standard) HFPC Filter Cartridge Filter Bag Filtration (Optional with Bag Adaptor Kit Silencer for Exhaust Left & Right ducting entry points Direct Inlet point with On/Off switch Wall Mounting of Power Unit Body Housing Construction ABS Dirt Capacity litres 25 Authority Approvals/Origin "C" Tick Compliance EMC-AS/NZS 1044 Complies to AS/NZS 60335.2.2 Made in Australia Installation Recommendations Size of Building up to Squares 70 Number of Inlet Points 10 Number of Aux Points 5 Working Hose length up to metres Maxdistance to furthest point metres Hide-A-Hose Compatible
