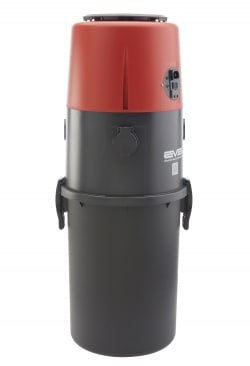

Electron EVS Ducted Vacuum Cleaner System Model 2707

Model 2707 Vacuum Motor Specifications Tangential By-pass discharge Double ball bearings Diameter of Motor mm 145 Air Watts Airflow / (max) 54 Sealed Vacuum mm H2O (max) 3250 RPM @19mm working orifice 23600 Label Rated Electrical Watts 1700 Noise Level db with Silencer@3m 73.0 Control Circuit 12 V DC Control Current 100mA Nominal Voltage 240 V AC Nominal Frequency 50 Hertz Power Unit Physical Specifications Overall Height (mm) 810 Overall Diameter (mm) 310 Overall Weight (kg) 7.4 Dual Filtration Compatible System Cyclonic Filtration (Standard) HFPC Filter Cartridge Filter Bag Filtration (Optional with Bag Adaptor Kit Silencer for Exhaust Left & Right ducting entry points Direct Inlet point with On/Off switch Wall Mounting of Power Unit Body Housing Construction ABS Dirt Capacity litres 25 Authority Approvals/Origin "C" Tick Compliance EMC AS/NZS 1044 Complies to AS/NZS 60336.2.2 Made in Australia Installation Recommendations Sure of Building up to Squares 70 Number of Inlet Point 10 Number of Aux Points 5 Working Hose length up to metres 16 Max distance to furthest point metres Hide-A-Hose Compatible
